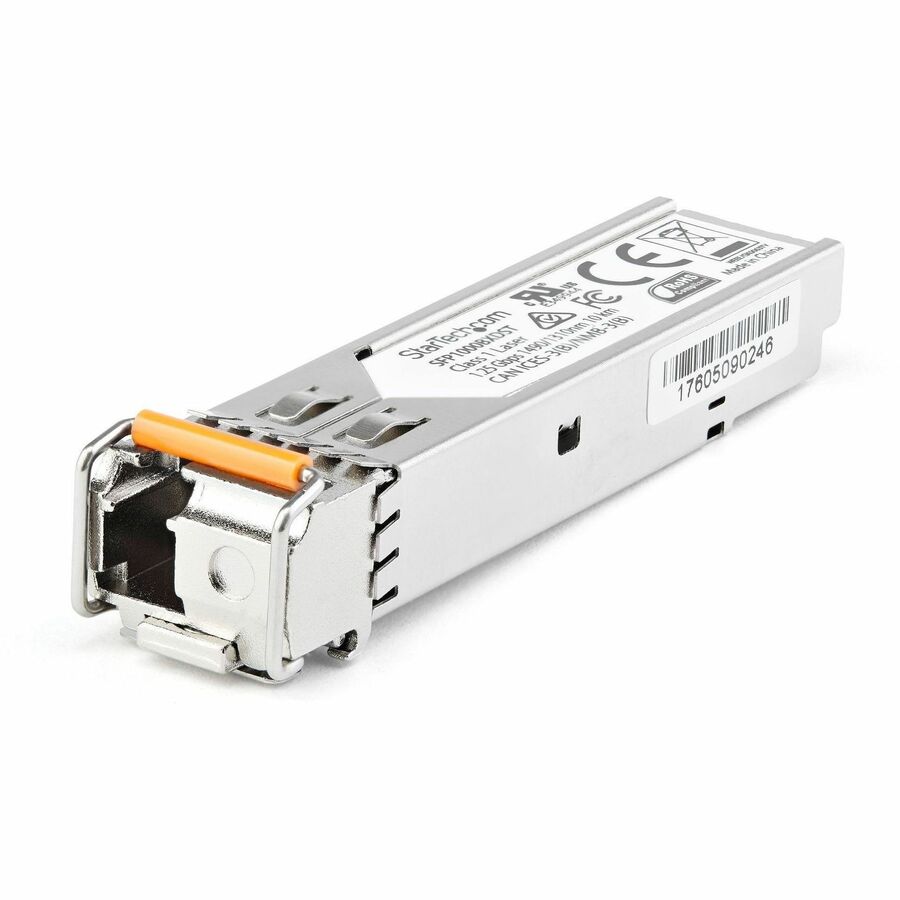

StarTech.com Dell EMC SFP-1G-BX80-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)
The SFP1GBX80UES is a Dell EMC SFP-1G-BX80-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX80DES. They are designed, programmed and tested to work with 1000Base-BX80 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:

• Wavelength: 1490nmTX/1550nmRX
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Low power consumption
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

More from the Manufacturer

• Single Mode (SMF)


• 1Gbps


• 10G Bi-Directional Upstream


• TECHNICAL SPECS: 1000BASE-BX-U


• INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two


• 100% DELL EMC SFP-1G-BX80-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity

Product Type: SFP (mini-GBIC)
Environmentally Friendly: Yes
Country Of Origin: China
Brand Name: StarTech.com
Compatibility: MSA Compliant
Form Factor: Hot-swappable
Manufacturer: StarTech.com
Product Name: Dell EMC SFP-1G-BX80-U Compatible SFP Transceiver Module - 1000Base-BX80
Manufacturer Part Number: SFP1GBX80UES
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1 Each
Limited Warranty: Lifetime
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Feature1: Single Mode (SMF)
Feature2: 1Gbps
Feature3: 10G Bi-Directional Upstream
Feature4: TECHNICAL SPECS: 1000BASE-BX-U
Feature5: INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
Feature6: 100% DELL EMC SFP-1G-BX80-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
