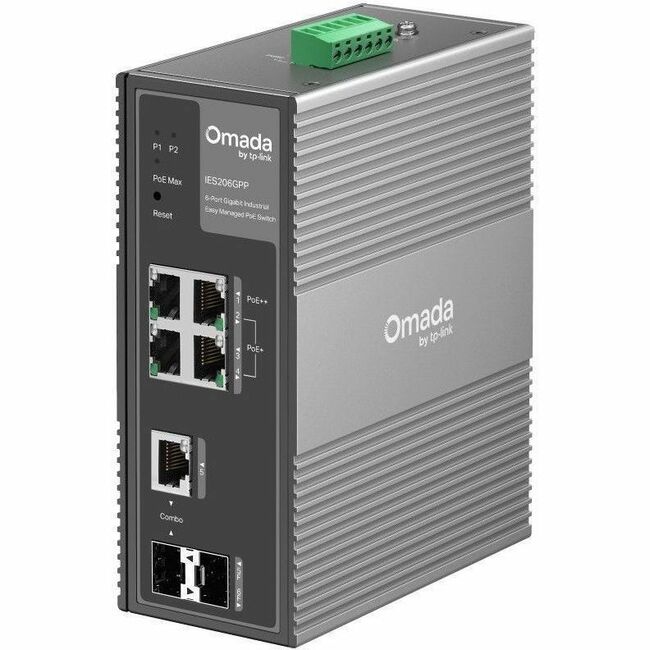

Omada IES206GPP Ethernet Switch

Omada Industrial 6-Port Gigabit Easy Managed PoE++ Switch

IES206GPP

6 Gigabit Ports (1 PoE++, 3 PoE+, 1 RJ45/SFP Combo, 1 SFP)

120W Total PoE Budget

-40°C to 75°C Operating Temperature

12~57VDC 1+1 Redundant Power Input

Industrial-Grade IP40 Aluminum Casing

Abundant Functions for CCTV Networking

Easy Centralized Management

DIN-Rail & Wall Mounting

Industrial-Grade Protection Built for Harsh Environments

-40°C to 75°C Operating Temperature

6kV Lightning Protection

Industrial-Grade IP40 Aluminum Casing

Enhanced Networking Stability and Security | 1+1 Redundant Power Input

Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails.

Real-Time Fault Alarm

Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal.

Gigabit PoE++ Ports for Reliable High-Power Device Support

• 1 Gigabit PoE++ RJ45 Ports


• 3 Gigabit PoE+ RJ45 Ports


• Budget up to 60W per PoE++ Port


• Total 120W PoE Power

Easy Operation and Maintenance with Omada's Free Cloud Management

Easy to Use with Plug-and-Play Design and Simple Configuration

Free and Easy Centralized Cloud Management via Omada Central Essentials

Access Logs and Receive Alert Notifications at Any Time

Easily Configure Surveillance Features Like 24/7 Camera Monitoring & Automatic Recovery

Flexible Deployment Options

DIN-rail

Wall-mount

Diverse Industry Applications

• Surveillance


• Industrial Automation


• Energy


• Smart Buildings

• 4 Gigabit RJ45 Ports (1 PoE++, 3 PoE+)


• 1 Gigabit Combo RJ45/SFP Slot, 1 Gigabit SFP Slot


• 120W Power Budget with up to 60W for PoE++ Port


• Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input


• Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP


• Centralized Cloud Management via the Web or Omada App


• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
