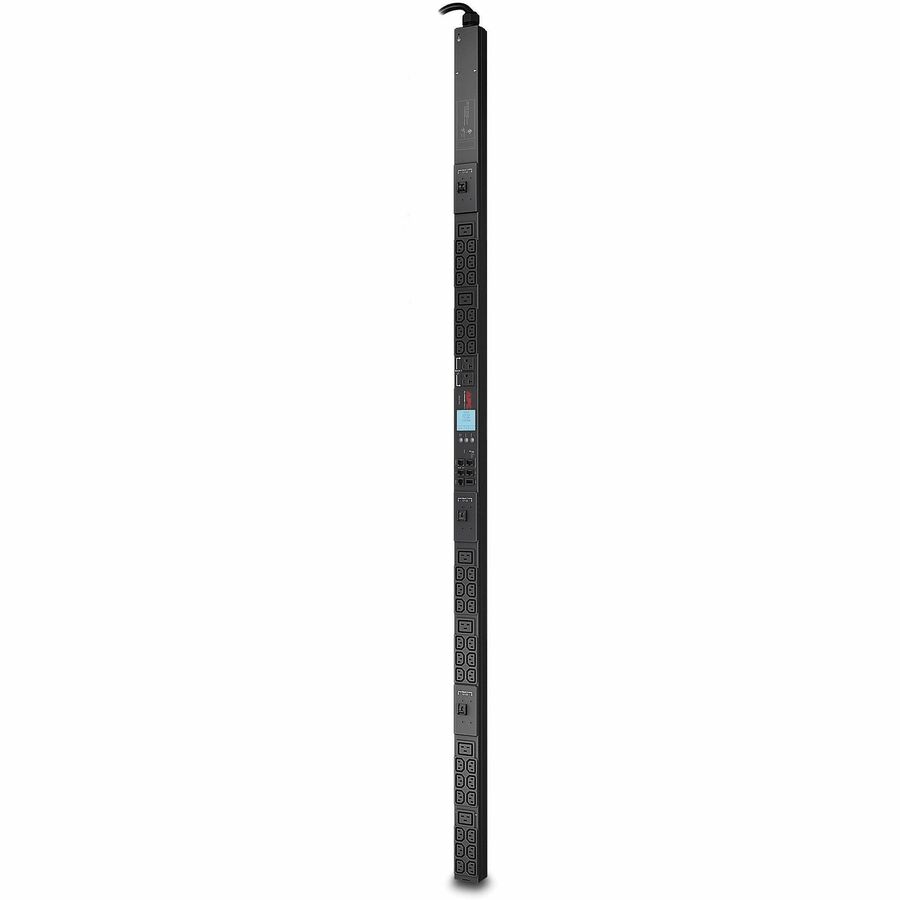

APC NetShelter Rack PDU, Metered, 0U, 8.6kW 208V 3-phase 30A, (36) C13, (6) C19, and (2) NEMA 5-20R outlets
$2,175.00 CAD
APC NetShelter Rack PDU, Metered, 0U, 8.6kW 208V 3-phase 30A, (36) C13, (6) C19, and (2) NEMA 5-20R outlets
$2,175.00 CAD
Impossible de charger la disponibilité du retrait
APC NetShelter Rack PDU, Metered, 0U, 8.6kW 208V 3-phase 30A, (36) C13, (6) C19, and (2) NEMA 5-20R outlets
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
- Zero U toolless installation
- 5.9' power cord, 2-year APC warranty
- Embedded log memory
- Interactive LCD display
- Active power measurements (volts, amps, kW, kWh)
- 1-Year Secure Network Management Card subscription included
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Ideal for colocation, large data centers or distributed IT sites
| Product Type: PDU |
| Additional Warranty Information: 2 years repair or replace |
| Environmentally Friendly: Yes |
| Environmental Certification: RoHS |
| Country Of Origin: India |
| Cord Length: 6 ft (1.82 m) |
| Rack Height: 0U |
| Brand Name: APC by Schneider Electric |
| Manufacturer: Schneider Electric SA |
| Product Model: AP8865 |
| Product Name: Metered Rack AP8865 44-Outlets PDU |
| Mount Type: Rack-mountable |
| Product Line: Metered Rack |
| Manufacturer Part Number: AP8865 |
| Manufacturer Website Address: http://www.schneider-electric.com |
| Package Contents: |
| Limited Warranty: 2 Year |
| Weight (Approximate): 16.67 lb (7561.38 g) |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS) |
| Mounting Orientation: Vertical |
| Placement: Side |
| Feature1: Zero U toolless installation |
| Feature2: 5.9' power cord, 2-year APC warranty |
| Feature3: Embedded log memory |
| Feature4: Interactive LCD display |
| Feature5: Active power measurements (volts, amps, kW, kWh) |
| Feature6: 1-Year Secure Network Management Card subscription included |
| Feature7: Stay on top by defining alarm thresholds in order to avoid overloaded circuits |
| Feature8: Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms |
| Feature9: Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh) |
| Feature10: Ideal for colocation, large data centers or distributed IT sites |
