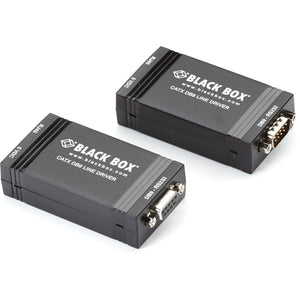

Black Box Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block

• Use long-distance CATx links to communicate with serial devices.
• Control presentations remotely.
• Transfer data between computers.
• Ideal for a wide variety of applications.
• Optical isolated.
• Maximum speed of 250 K.
• Easy installation. The driver provides full-duplex transmission and hardware handshake signals. There's no need for setup or configuration.

These CATx Line Drivers enable the user to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device; the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD, RXD, RTS, and CTS signals to allow application to use hardware handshake signals if neccessary.

Product Type: Serial Extender
Environmentally Friendly: Yes
Taa Compliant: Yes
Country Of Origin: United States
Certifications & Standards: CE UL
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block
Manufacturer Part Number: ME890A-R2
Manufacturer Website Address: http://www.blackbox.com
Package Contents: 1 x Local Unit 1 x Remote Unit 2 x 120 V Power Supplies
Limited Warranty: 1 Year
Additional Information: Cable Requirement CATx Connectors Local unit: (1) DB9 F (DCE), (1) RJ-45, (1) power jack; Remote unit: (1) DB9 M (DTE), (1) RJ-45, (1) power jack Distance 4000 ft. (1219.2 m) maximum Interface RS-232 Operation Asynchronous, full-duplex Power Input: 100-240 VAC; Output: 12-VDC power adapter Speed 250 kbps maximum
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
