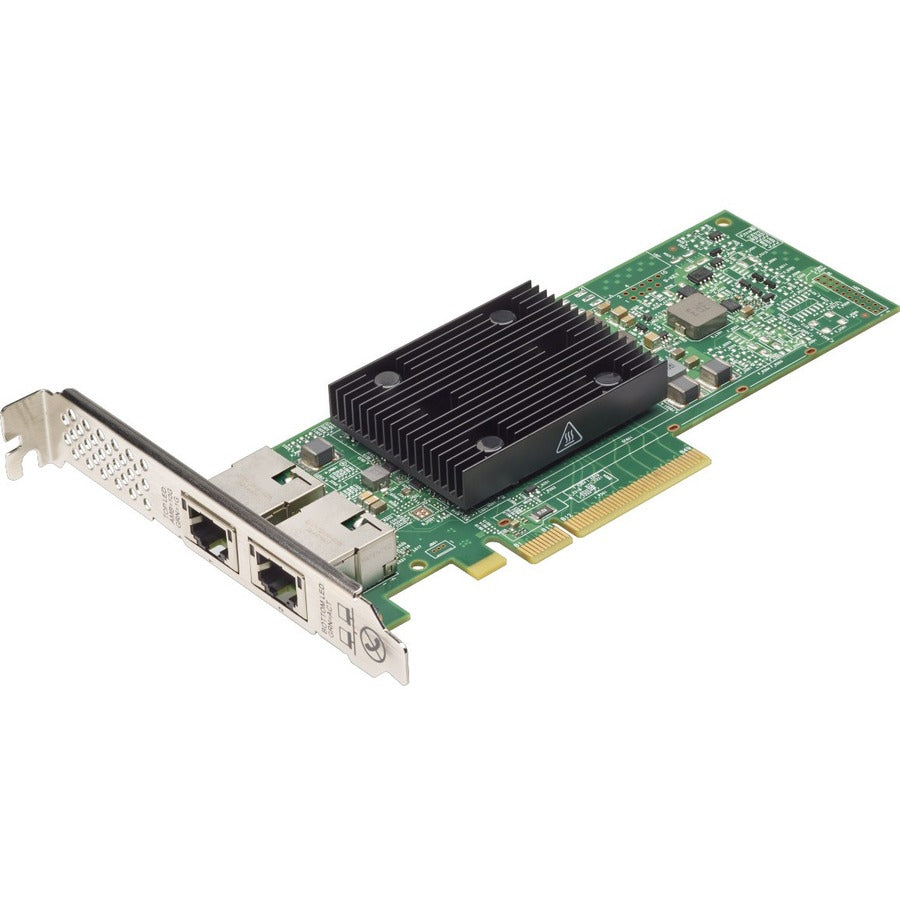

Lenovo ThinkSystem Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter

Introduction

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

Did you know?

10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling.

The Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter is a special mezzanine LAN-on-motherboard (mezzanine LOM) form factor adapter that also supports the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard XClarity Controller (XCC) management processor. This support enables the sharing the network interface with the XCC and the operating system, thereby eliminating the need for a separate management network.

• 10Gigabit Ethernet card offers the flexibility and scalability to make infrastructure run as efficiently and productively as possible with 10Gigabit data transfer rate


• Enjoy superfast data transfer of up to 8000 MB/s with PCI Express 3.0 x8 card, between the network card and motherboards


• This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation


• Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters


• With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
