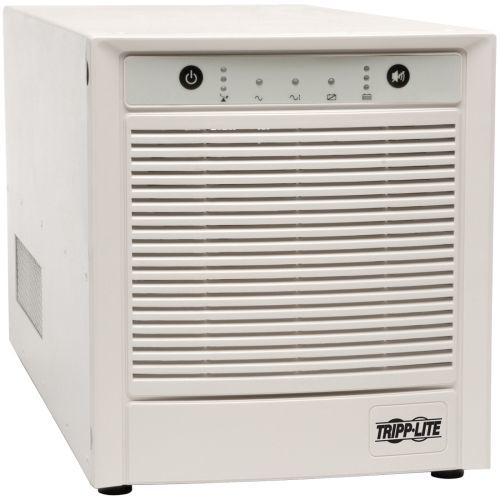

Tripp Lite SMART2500XLHG uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1920 W 8 AC outlet(s)

UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite’s SMART2500XLHG SmartPro® Medical UPS System.

Reliable Medical-Grade Power Protection. The SMART2500XLHG complies with UL 60601-1 standards, making it an ideal choice for UPS systems in patient care areas. It provides a 2200VA/1920W capacity to ensure critical medical equipment remains operational during power disruptions.

Comprehensive Connectivity Options. Equipped with 4 NEMA 5-15/20R outlets and 4 IEC C13 outlets, the SMART2500XLHG enables flexible connections to a variety of devices. The included USB and serial ports provide additional monitoring capabilities for enhanced usability.

Optimal Safety Features. The unit features built-in Faraday shielding for full line isolation, reducing cumulative leakage current to below 100 μA, thereby ensuring safety in sensitive environments. Continuous noise filtering also enhances performance.

Advanced Voltage Regulation. With its line-interactive technology, the SMART2500XLHG corrects voltage fluctuations from 83 to 143V without using battery power, ensuring uninterrupted operation during overvoltages and brownouts.

Expandable Runtime Solutions. For extended runtime, optional external battery packs can be added to support critical medical operations during long power outages. The unit also features large internal batteries for maintaining power during blackouts.

Complete Surge Protection. The SMART2500XLHG offers comprehensive surge protection (510 Joules) to safeguard against transient surges and other electrical disturbances. It includes software for monitoring and automated file saves, ensuring the safety and reliability of connected equipment.

Features

• Supports loads up to 2200VA/1920W
• USB communication port
• Full UL 60601-1 compliance
• Line-interactive voltage regulation
• Built-in Faraday shielding
• Expandable runtime with external battery packs
