Tripp Lite series SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
$948.03 CAD
Tripp Lite series SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
$948.03 CAD
Couldn't load pickup availability

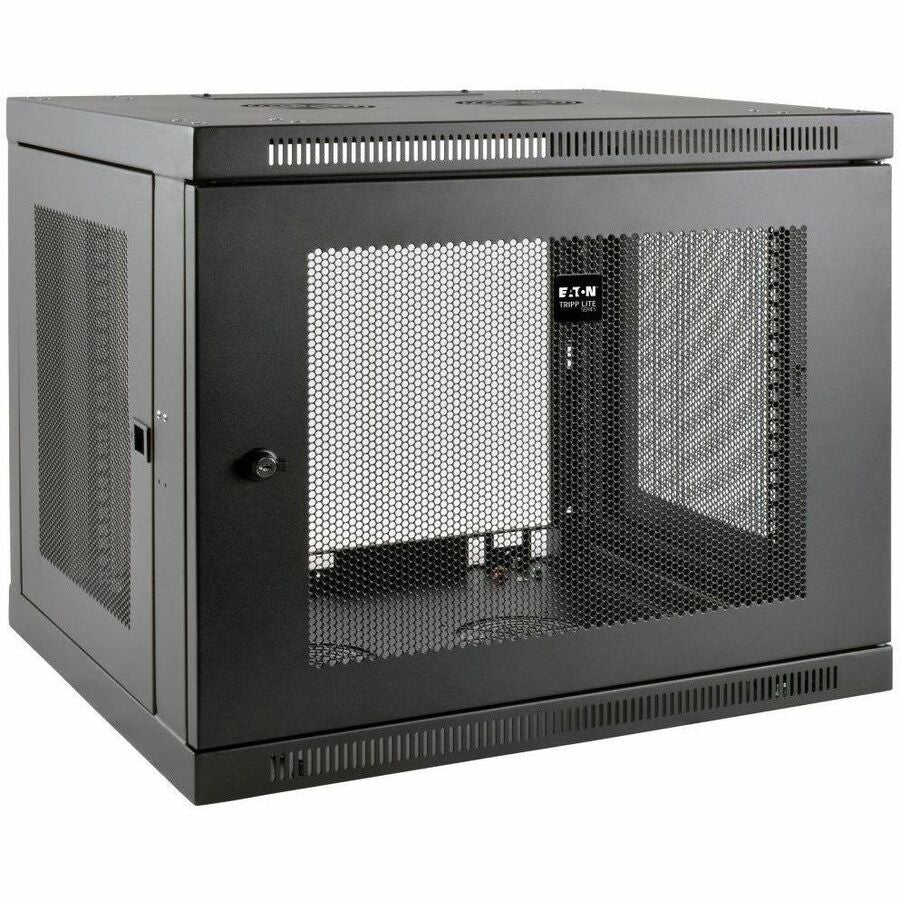

Tripp Lite series SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
The SRW9UDP SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW9UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
- Mounts to wall or rolls on floor (with optional SRCASTER)
- Flow-through ventilation keeps equipment cool
- Secures 9U of 19 in. rack equipment up to 20.5 in. deep
- Locking steel cabinet vented at sides, front, top and bottom
- Maximum load capacity of 200 lb.
| Product Type: Rack Cabinet |
| Environmentally Friendly: Yes |
| Maximum Weight Capacity: 200 lb (90718.47 g) |
| Static/Stationary Weight Capacity: 200 lb (90718.47 g) |
| Rack Depth: 20.50" (520.70 mm) |
| Product Color: Black |
| Color Family: Black |
| Country Of Origin: China |
| Assembly Required: No |
| Rack Width: 19" (482.60 mm) |
| Rack Height: 9U |
| Brand Name: Tripp Lite series |
| Form Factor: Wall Mountable |
| Manufacturer: Eaton Corporation |
| Product Model: SRW9UDP |
| Product Name: SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet |
| Product Line: SmartRack |
| Manufacturer Part Number: SRW9UDP |
| Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Package Contents:
|
| Limited Warranty: 5 Year |
| Weight (Approximate): 51.80 lb (23496.08 g) |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS) |
Fbbs:
|
| Feature1: Mounts to wall or rolls on floor (with optional SRCASTER) |
| Feature2: Flow-through ventilation keeps equipment cool |
| Feature3: Secures 9U of 19 in. rack equipment up to 20.5 in. deep |
| Feature4: Locking steel cabinet vented at sides, front, top and bottom |
| Feature5: Maximum load capacity of 200 lb. |
