ATEN 1-Local/Remote Share Access Single Port DVI KVM over IP Switch
$1,705.62 CAD
ATEN 1-Local/Remote Share Access Single Port DVI KVM over IP Switch
$1,705.62 CAD
Couldn't load pickup availability
ATEN 1-Local/Remote Share Access Single Port DVI KVM over IP Switch

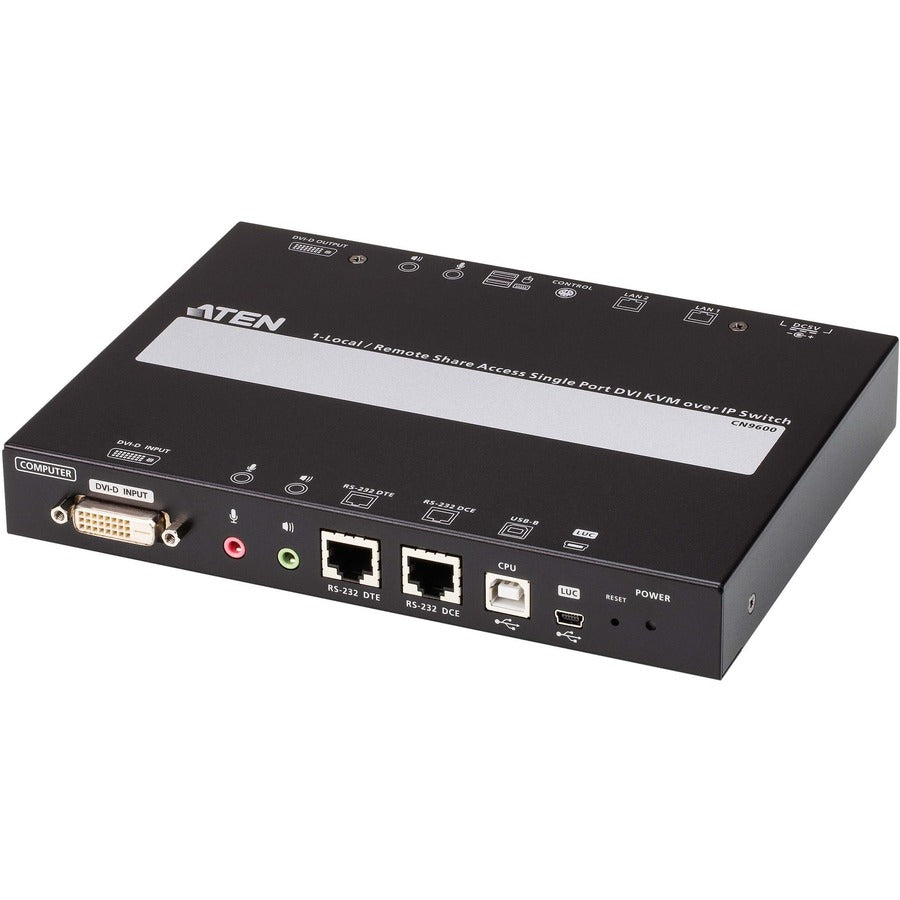

The CN9600 DVI KVM over IP Switch is a cost-efficient over-IP device, which allows remote access of digital video, audio and virtual media via remote control of a PC or workstation. The CN9600 enables over-IP capability by connecting compatible ATEN DVI KVM switch and/or LCD console, such as the CS1768 (8-Port USB DVI/Audio KVM Switch) or the CL3800 (DVI LCD Console).
The CN9600 expands on previous models by providing a more compact, slimmer space-saving design for utility optimization, and a FPGA graphics processor that offers better image and video quality to enhance user experience, while also meeting the RS-232 DTE/DCE standards for serial control.
For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port. Users just simply connect a laptop to the LUC port, and can access any computer connected to the switch for easy on-site management. That means no additional monitor, keyboard and mouse is strongly required locally for routine maintenance. Besides, the CN9600's Virtual Media function allows a user to perform diagnostic testing, file transfers, or apply OS/applications updates and patches from a remote console.
To ensure seamless connectivity, the CN9600 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. The CN9600 also supports microphone and speakers on the local and remote console.
Integrating all these advanced functionalities, the CN9600 provides an affordable and durable over-IP server management solution while assuring users with operational dependability and efficiency.
- High video resolution - up to 1920 x 1200 @ 60Hz for both local and remote consoles
- Virtual Media support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Dual Power Supply for power backup
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- A mini USB port on the front panel serves as a Laptop USB Console (LUC) port
- Local console provides USB keyboard and mouse support
- Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality*
- Provides a FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response
- Compact and slim design for space utility optimization
| Product Type: KVM Console/Extender |
| Environmentally Friendly: Yes |
| Brand Name: ATEN |
| Form Factor: Rack-mountable |
| Manufacturer: ATEN Technology, Inc |
| Product Model: CN9600 |
| Product Name: 1-Local/Remote Share Access Single Port DVI KVM over IP Switch |
| Manufacturer Part Number: CN9600 |
| Manufacturer Website Address: http://www.aten.com/us/en/ |
| Packaged Quantity: 1 |
Package Contents:
|
| Environmental Compliance: Restriction of Hazardous Substances (RoHS) |
| Feature1: High video resolution - up to 1920 x 1200 @ 60Hz for both local and remote consoles |
| Feature2: Virtual Media support |
| Feature3: Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices |
| Feature4: Dual Power Supply for power backup |
| Feature5: Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation |
| Feature6: A mini USB port on the front panel serves as a Laptop USB Console (LUC) port |
| Feature7: Local console provides USB keyboard and mouse support |
| Feature8: Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality* |
| Feature9: Provides a FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response |
| Feature10: Compact and slim design for space utility optimization |
