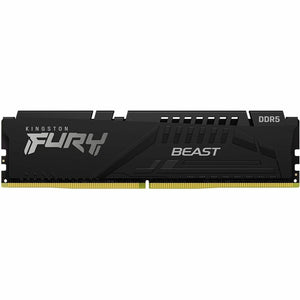

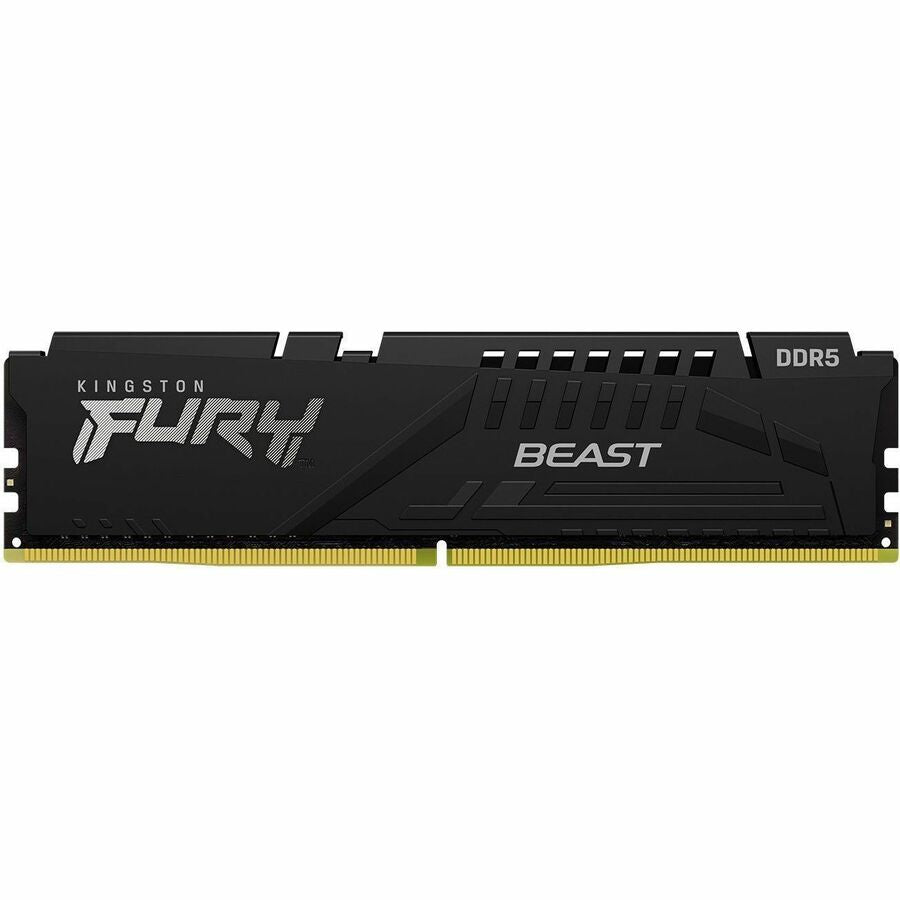

Kingston 16GB (1x16GB) DDR5 6400MT/s CL32 FURY Beast Black EXPO

Kingston FURY KF564C32BBE-16 is a 2G x 64-bit (16GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V


• EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V


• EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V


• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V


• XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V


• XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V

FEATURES

• Power Supply: VDD = 1.1V Typical


• VDDQ = 1.1V Typical


• VPP = 1.8V Typical


• VDDSPD = 1.8V to 2.0V


• On-Die ECC


• Height 1.37" (34.9mm), w/heatsink

• 6400 MHz of memory speed makes your computer perform like an athlete


• DIMM 16 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience


• With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
