Tripp Lite series Metered PDU3XMV6G20 45-Outlets 11.5kVA PDU

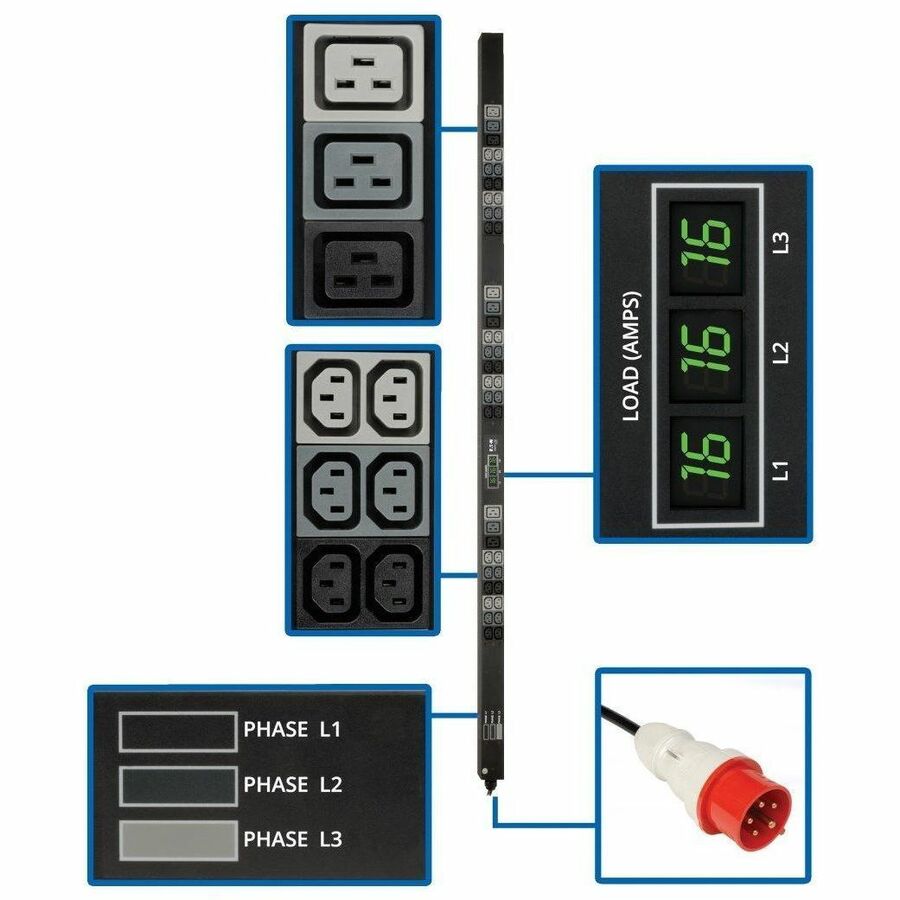

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord
- 36 C13 & 9 C19 single phase outlets; Included cord retention brackets
- Set of 3 digital meters reports output load level per phase in amps
- 70in / 1778mm 0U vertical format, toolless button-mount installation
- Metered 11.5kW 3 Phase 415/240V, 400/230V, 380/220V input / output PDU
| Product Type: PDU |
| Environmentally Friendly: Yes |
| Environmental Certification: RoHS |
| Taa Compliant: Yes |
| Mounting Orientation: Vertical |
| Country Of Origin: Taiwan |
| Product Series: Metered |
| Brand Name: Tripp Lite series |
| Manufacturer: Eaton Corporation |
| Product Model: PDU3XMV6G20 |
| Product Name: Metered PDU3XMV6G20 45-Outlets 11.5kVA PDU |
| Mount Type: Rack-mountable |
| Manufacturer Part Number: PDU3XMV6G20 |
| Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Package Contents:
|
| Limited Warranty: 2 Year |
| Weight (Approximate): 9 lb (4082.33 g) |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS) |
Fbbs:
|
| Feature1: IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord |
| Feature2: 36 C13 & 9 C19 single phase outlets; Included cord retention brackets |
| Feature3: Set of 3 digital meters reports output load level per phase in amps |
| Feature4: 70in / 1778mm 0U vertical format, toolless button-mount installation |
| Feature5: Metered 11.5kW 3 Phase 415/240V, 400/230V, 380/220V input / output PDU |
