Tripp Lite series SmartRack SRWF2U36 Rack Cabinet

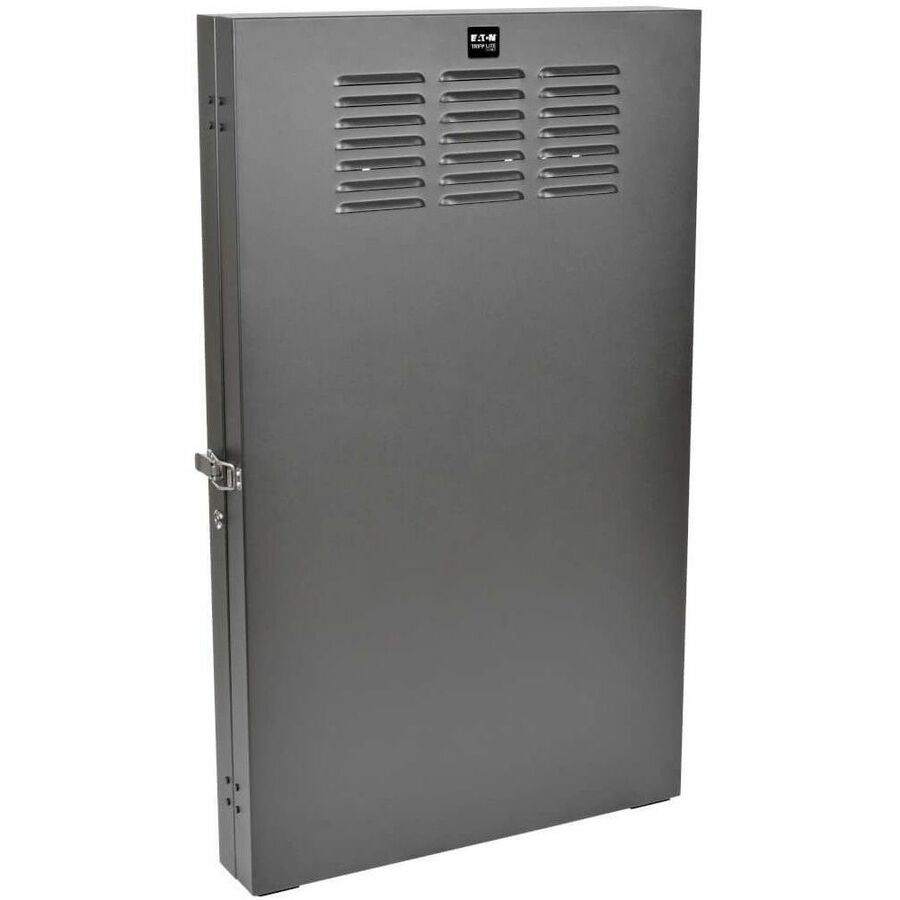

The SRWF2U36 SmartRack 2U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.
Because the low-profile cabinet mounts vertically, it extends less than five inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 2U of rack space in the primary mounting area, it also includes a slide-out 1U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The front door locks securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF2U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
- Ships fully assembled for quick installation
- Includes additional 1U of space for patch panels
- Secures 2U of 19 in. rack equipment up to 36 in. deep
- Maximum load capacity of 150 lb.
- Locking steel cabinet vented to keep equipment cool
| Product Type: Rack Cabinet |
| Environmentally Friendly: Yes |
| Maximum Weight Capacity: 150 lb (68038.86 g) |
| Static/Stationary Weight Capacity: 150 lb (68038.86 g) |
| Rack Depth: 36" (914.40 mm) |
| Product Color: Black Powder Coat |
| Color Family: Black |
| Product Material: Steel |
| Country Of Origin: China |
| Assembly Required: No |
| Rack Width: 19" (482.60 mm) |
| Rack Height: 5U |
| Brand Name: Tripp Lite series |
| Form Factor: Wall Mountable |
| Manufacturer: Eaton Corporation |
| Product Model: SRWF2U36 |
| Product Name: SmartRack SRWF2U36 Rack Cabinet |
| Product Line: SmartRack |
| Manufacturer Part Number: SRWF2U36 |
| Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Package Contents:
|
| Limited Warranty: 5 Year |
| Weight (Approximate): 55 lb (24947.58 g) |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS) |
Fbbs:
|
| Feature1: Ships fully assembled for quick installation |
| Feature2: Includes additional 1U of space for patch panels |
| Feature3: Secures 2U of 19 in. rack equipment up to 36 in. deep |
| Feature4: Maximum load capacity of 150 lb. |
| Feature5: Locking steel cabinet vented to keep equipment cool |
